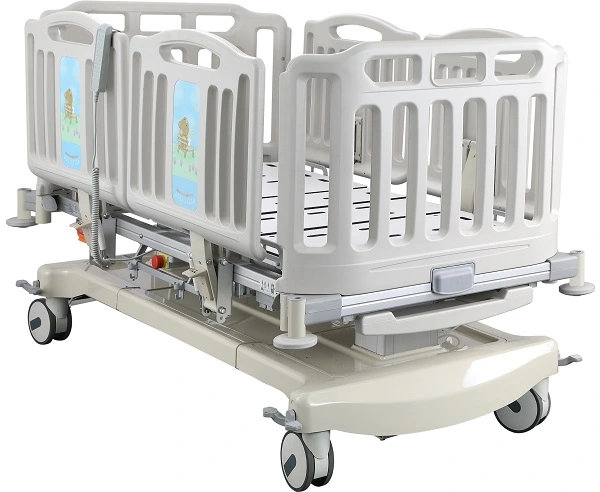

Paediatric Child Assure Cot with Maximum Electric Functions

KY-B5-8710A Paediatric Child Assure Cot with Maximum Electric Functions  is minimal complexity, so you can spend less time operating the bed and more time focusing on essential tasks such as mobilising your patients. Paediatric Child Assure Cot is with the help of carefully designed functions such as the trendelenburg and Reverse Trendelenburg, etc. the care grip and one-button egress position. you can effectively progress your patient through the steps of mobility.

Main Feature:

Main functions
A:Height Adjustment; BBackrest Adjustment ; C:Legrest Adjustment
CPR Rapid Release;
Bed Specifications
Bed Size: L1850*W970*H1150-1500mm
Patient Support Surface: L1605*W720*H570-930mm
 Backrest Adjustment: 0~60°
Legrest Adjustment: 0-30°
The foot section provides manual adjustment with 10 positions.
Whole-Body Tilt: +15°~-15°?
Bed Length Extended: 0~200mm
 Product Function
 Height Adjustment
Backrest Adjustment
 Legrest Adjustment
Forward/Backward Tilt
Bed Length Extending by motor
 CPR Rapid Release
Guardrail Height Adjustment
 collision wheels for four corners
Central Braking Casters
 Standard Configuration
Advanced medical motors 6pcs
 control panel 1pc
 Control box 1pc
 emergency stop button 1pc
 CPR Rapid Release handle 2pcs
 storage battery 1pc
Central Braking Casters 4pcs
 PP head and foot board 1pair
 PP side rail 2pairs
 I.V. Pole 1pair

Paediatric Child Assure Cot is Ease of handling:

(1)Electric height adjustment ranging from H1150-1500mm by electric actuators.

(2) 4 pcs 5inch central control castors with central braking system and steel.

(3) quick embergency release back rest system for emergency events or electrical failure.

(4) Clinician handset for easy of use

Paediatric Child Assure Cot is very Safe using for many fancy hospital

peripheral vision of 360 with transparent end rails.

single operation side rails, with soften lowering system and safety plunger to avoid accidental opening.

Quick emgergency release backrest system.

conforms to CE, iso 13485 and ISO9001.
